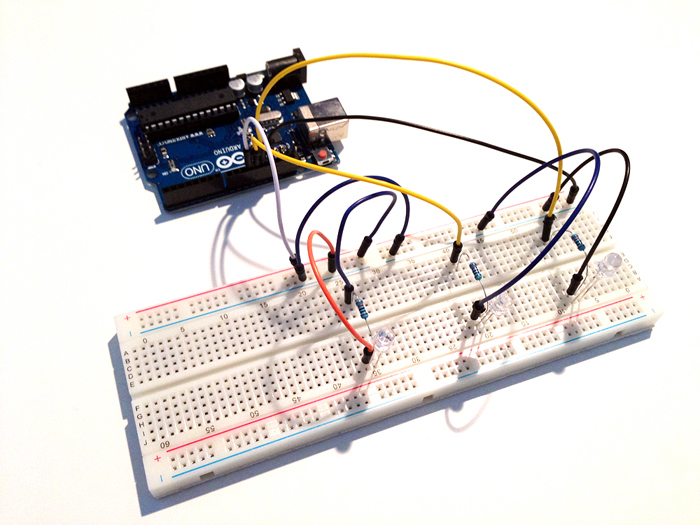

Flashes three LEDs back and forth. A good project for both beginners and kids.
Arduino Uno R3
Prototyping Board
Seven Prototyping Wires
Three 220 Ohm Resistors
Three LEDs (Red, Yellow, and Blue)
Standard A-B USB Cable

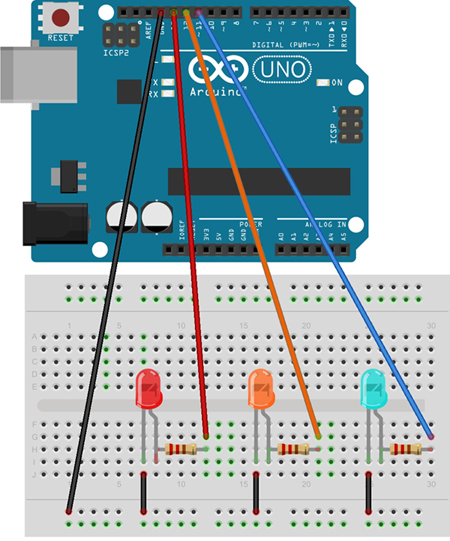

Connect the parts together according to the diagram below:
Load the code into the unit via USB cable.
Freeware
Three LED Controller [Source] - 1.0.0 (Arduino)

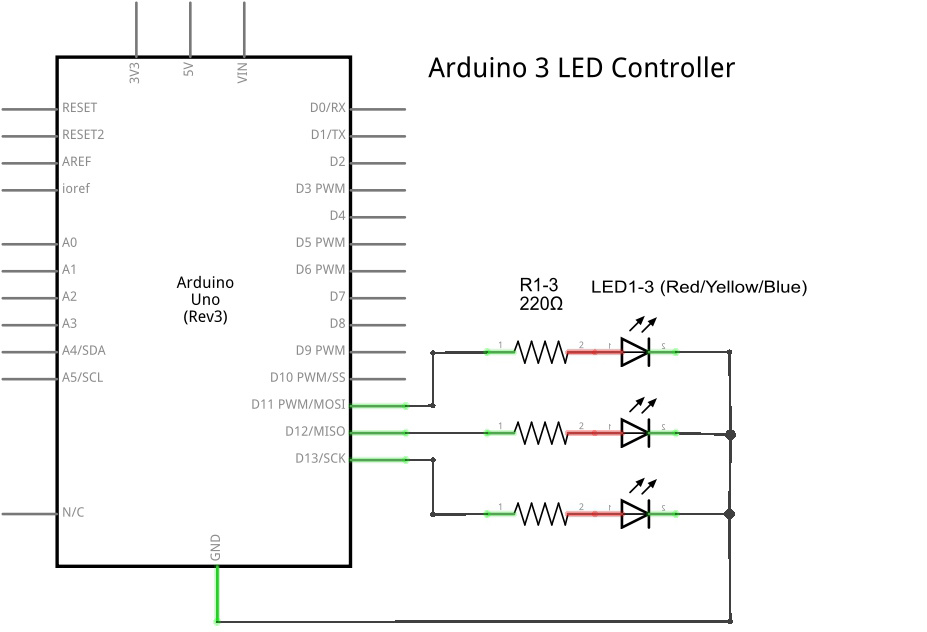

Three LED Controller 1.0.0 [Schematic] - 1.0.0 (Arduino)
1.0.0 (Oct 5th, 2014): Initial release.
